Allco Waterproofing Solutions

Waterstop RX

Concrete substrate is acceptable

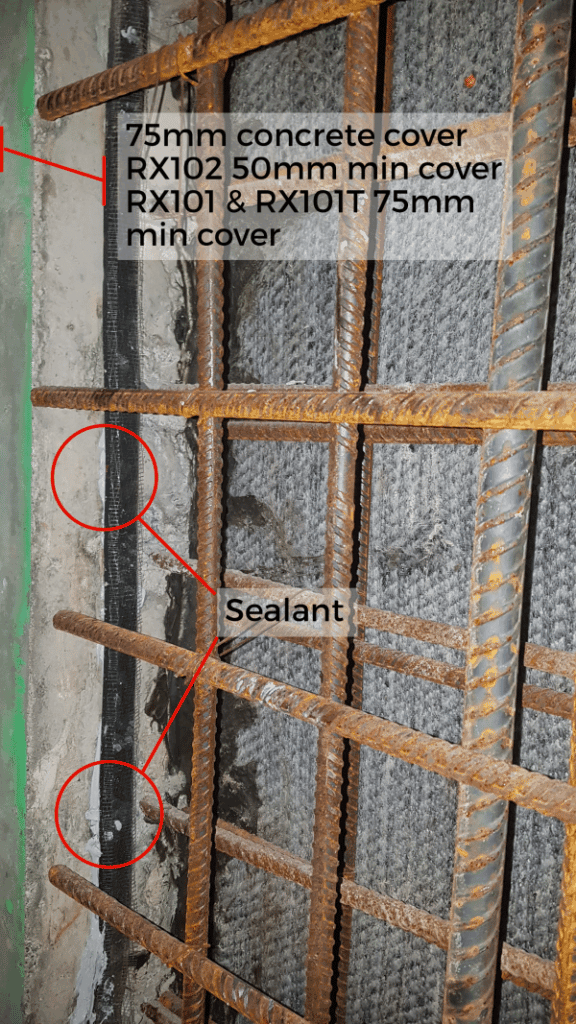

Confirm minimum concrete coverage can be maintained where waterstop is applied (50mm RX102 & 75mm for others)

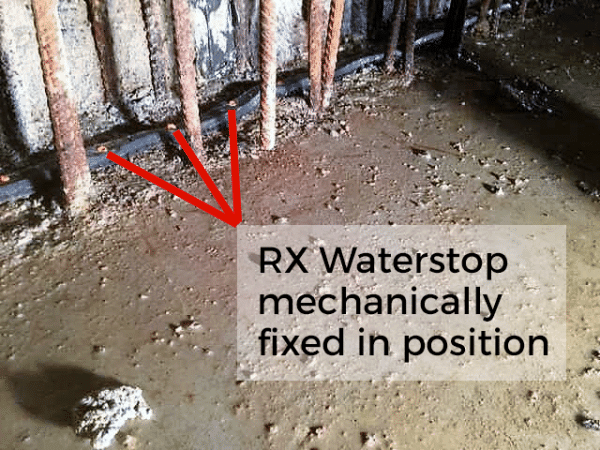

RX Waterstop has been mechanically fixed or adhered in position
RX Waterstop is in full contact to the concrete substrate where applied
RX Waterstop is detailed well on all corners

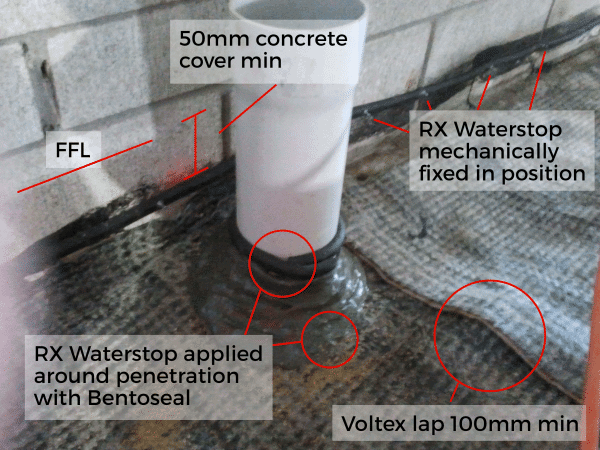

All penetrations are detailed with RX Waterstop
If penetrations have RX Waterstop applied, confirm the minimum coverage is sufficient
All parties are aware of the RX Waterstop requirements with exposure to climatic conditions
Photos have been taken of the RX Waterstop installation
Concrete pour date confirmed
RX Waterstop will not be exposed to a wet environment for more than 24hrs (if yes then protection must be provided until concrete pour)
RX Waterstop is not to sit in pooled water
