Cloth Tape is a high performance, polyethylene coated cloth tape for use with Allco Allsheet DPM.
Polythene DPM
by Allco

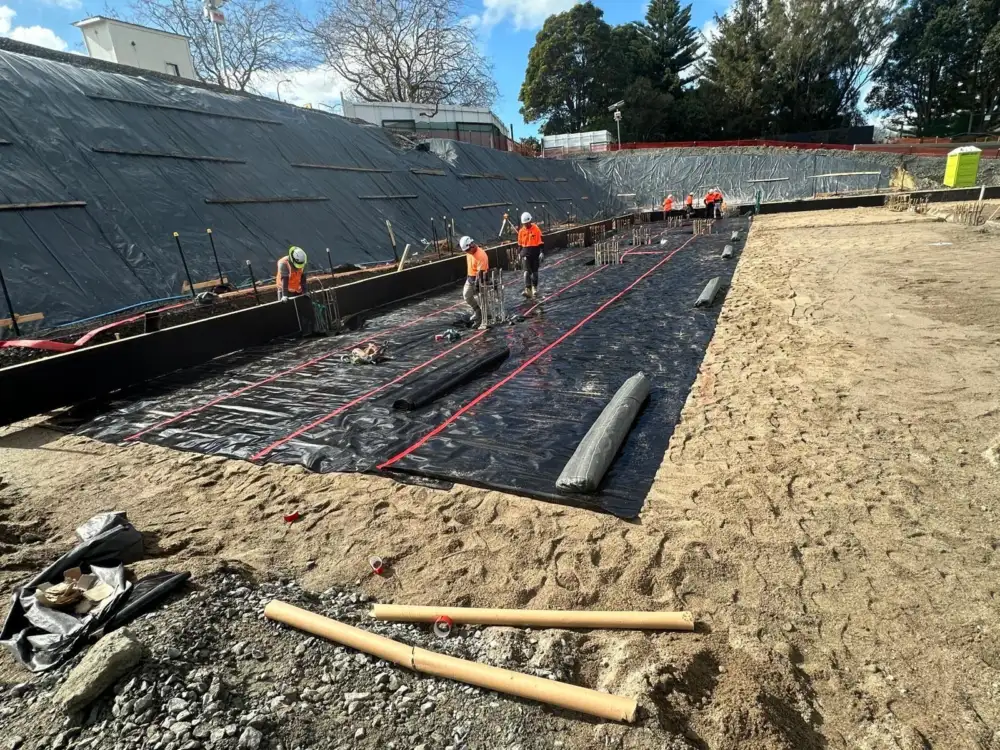

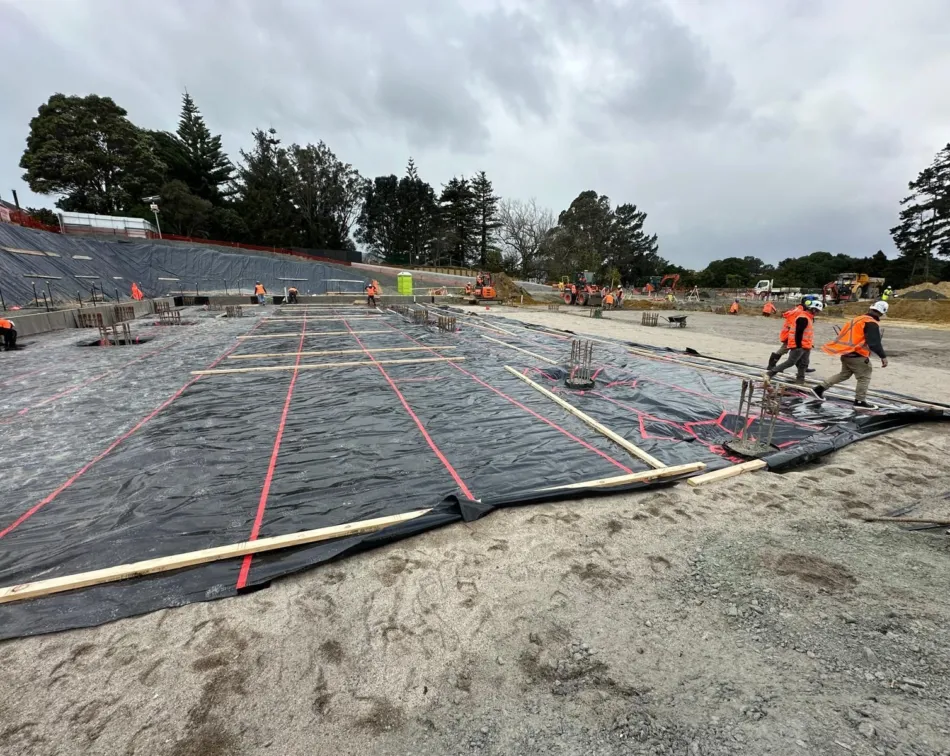

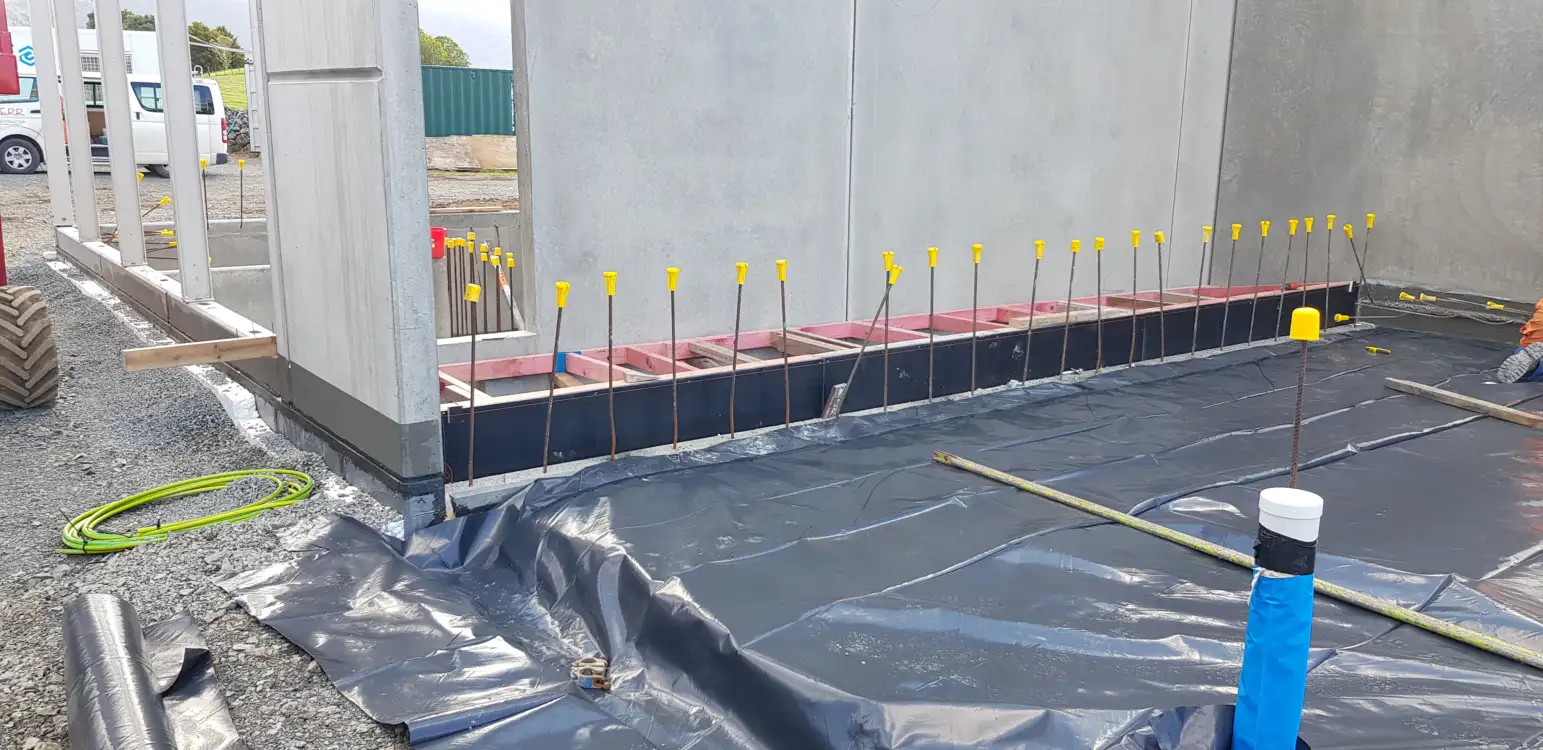

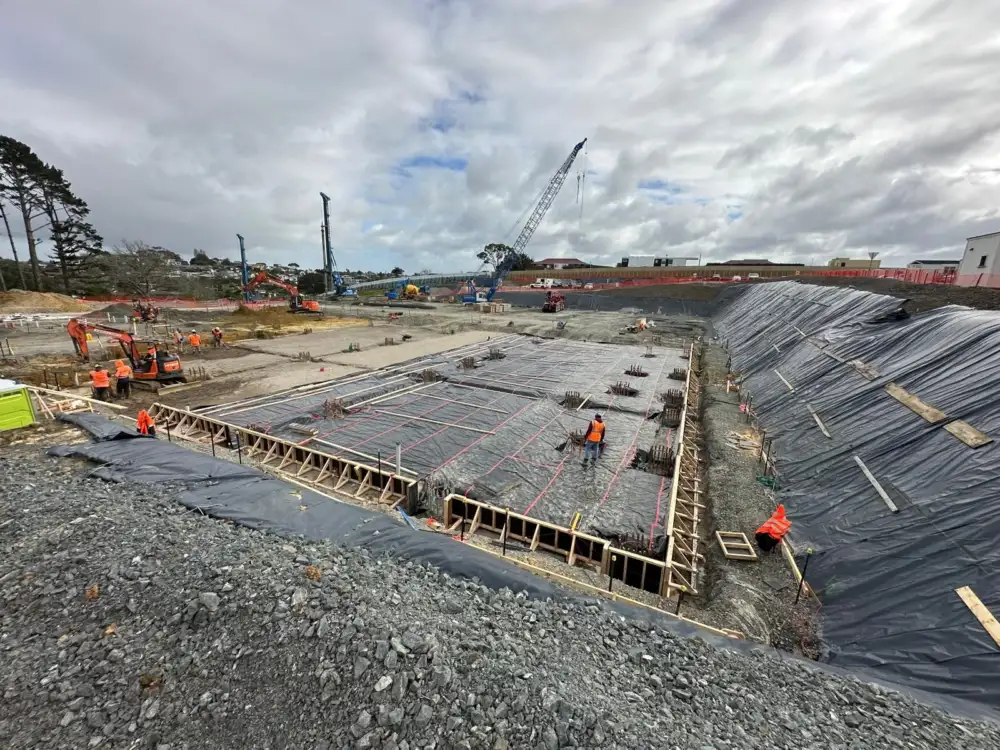

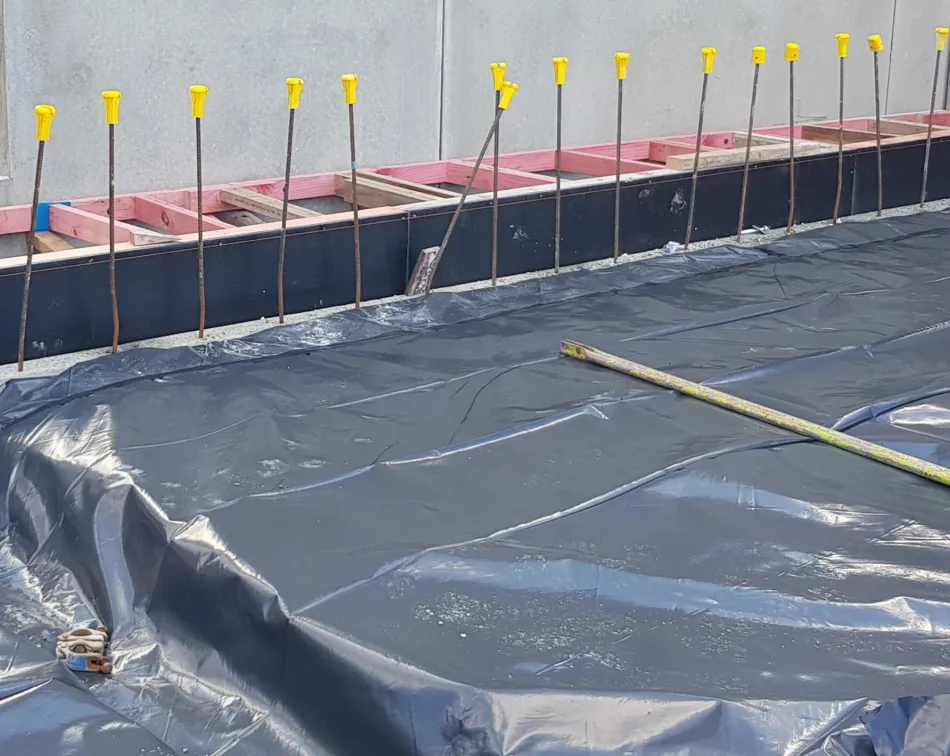

Allsheet is a damp proofing membrane manufactured from resin flexible polyethylene. Allsheet has excellent tear resistance and puncture resistance and is highly resistant to acid and base chemicals.
Our Allsheet comes in 2 thickness, 500 and 300 microns.
As a damp proof membrane, Allsheet can be for use in low risk / non-hydrostatic conditions, providing some basic gas, moisture and vapour barrier properties. Please note that DPM does not form part of our Waterproofing System and is used solely as a damp-proof membrane.
Features
Excellent tear and puncture resistance
Allsheet is thicker and stronger than conventional polythene, increasing tear and puncture resistance.
Vapour Barrier
Provides some vapour-barrier properties for use in low risk, non-hydrostatic conditions.
Performance
Allsheet 500 (500 micron) is supplied in (flat wound) roll form 2m x 50m.
Allsheet 300 (300 micron) is supplied in (flat wound) roll form 4m x 25m.
All joints must be lapped a minimum 150mm and taped using Allco Seam Tape from Allco, or similar approved PVC tape.
Allsheet has a minimum life of 50 years under the following conditions:
1. Must be installed as outlined in E2/AS1 10.3.3. Damp Proof Membranes, and must be laid on a properly prepared base as required by NZS3604:2011 & E2/AS1.
2. Free from tear, puncture, or damage during installation
3. Storage away from direct sunlight before installation
4. Is not left exposed for more than 28 days.
5. No exposure to corrosive or petrochemical agent
6. Installed by or under the supervision of a licensed building practitioner.
7. The concrete remains unbroken
8. The building maintains structural integrity
