Volclay Swelltite

by Cetco

SWELLTITE® Composite Bentonite Waterproofing System offers superior performance by combining the active waterproofing benefits of sodium bentonite with the strength and durability of a thick geomembrane liner. Unlike other membrane systems that require precise installation, SWELLTITE’s reactive bentonite compound can expand to seal small punctures in the membrane. SWELLTITE works by forming a continuous membrane upon hydration with water or vapour. When confined under pressure, the swell is controlled, forming a dense, positive seal against the concrete.

SWELLTITE features a virtually zero VOC waterproofing membrane composite. It’s comprised of a thick layer of sodium bentonite compound that’s bonded between a tough geomembrane liner and a clear poly siliconized release liner.

Whether a structure is under continuous or intermittent hydrostatic pressure, SWELLTITE is a proven and reliable barrier against water. Bonding an active bentonite layer between tough, puncture-resistant geomembrane layers, SWELLTITE combines both passive and active barriers to substantially reduce the possibility for leaks.

Features

Flexible

SWELLTITE is comprised of a thick layer of sodium bentonite compound that’s bonded between a tough geomembrane liner and a clear poly siliconized release liner to provide flexibility.

Fast and Easy to Install

SWELLTITE comes ready to install allowing for faster and easy installation speeding up the construction process and can be applied to new or existing structures.

No Priming

SWELLTITE can be applied to a damp or wet surface, no priming required.

Applied to Wet Substrate

Unlike most membranes, SWELLTITE does not require a dry substrate to be installed.

No Curing Time

No curing time means it can be applied to green concrete.

Durable and Self-Sealing

SWELLTITE is extremely durable and self-sealing—there are no worries about the inevitable small cuts and punctures that always occur on construction sites.

Ideal Membrane for:

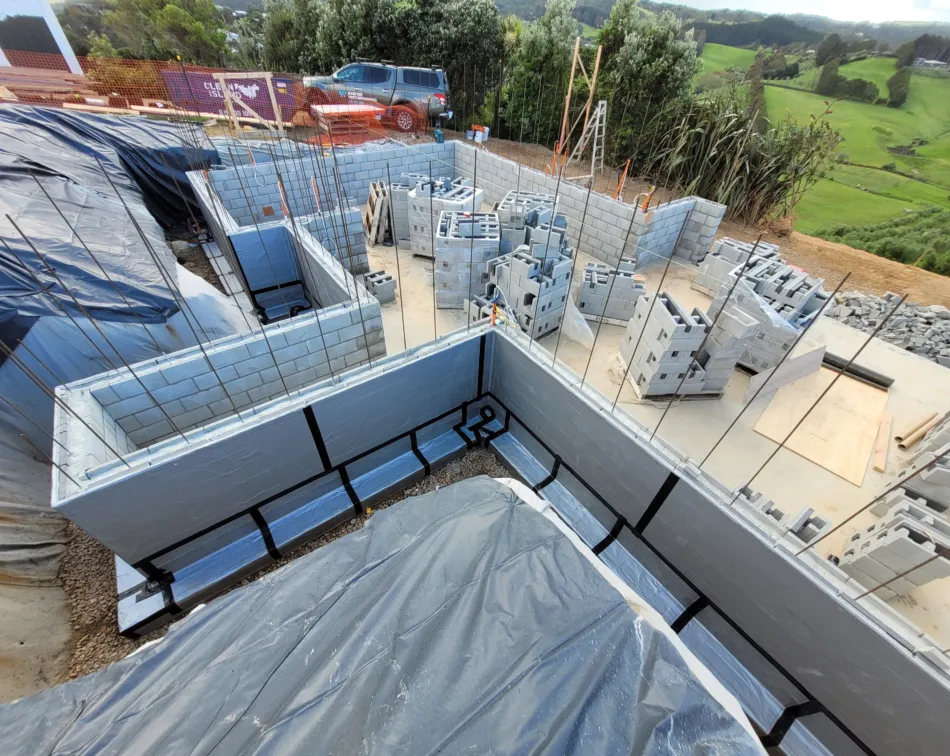

Masonry block walls, Erected concrete walls, Precast panels, Insitupoured walls, Ground beams, Internal leaks when confinement can be achieved

Performance

Swelltite is designed for waterproofing below-grade vertical and horizontal structural surfaces, as well as, above grade split-slab construction used with plaza areas, parking garages and sports stadiums. Swelltite is excellent for:

  • Below-grade masonry block walls
  • Cut & Cover Tunnels
  • Masonry Block Foundation Walls
  • Concrete Foundation Walls
  • Earth-covered Structures
  • B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years.
  • E2 EXTERNAL MOISTURE: Performance E2.3.3.
  • F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. The Volclay® Waterproofing System meets this requirement and will not present a health hazard to people.
  • BRANZ and BBA Appraised

The Volclay Waterproofing System is an approved Alternative Solution in terms of New Zealand Building Code compliance.

ROLL SIZE & PACKAGING:

Volclay Swelltite is supplied in 1.0 m x 11.5 m rolls for 11.5 m² per roll.

LIMITATIONS

Swelltite should be installed on properly prepared surfaces with confinement, using smooth cast-in-place concrete and removable forms, and is not suitable for unconfined above-grade applications, standing water, or during precipitation; compatibility testing is required for groundwater with high acidity or conductivity, and installation should only occur in dry conditions.

Document Type Brand Actions
Volclay Swelltite Environmental Product Declaration (EPD)
pdf2.88 MB
Environmental Product Declaration (EPD) Cetco Preview Download
TANKING - PROPERTY OWNER/END USER INSPECTION SHEET
pdf0.08 MB
Warranties Cetco Preview Download
CARE & MAINTENANCE DOCUMENTS - VOLCLAY RANGE
pdf0.17 MB
Warranties Cetco Preview Download
CETCO VOLCLAY SYSTEM WARRANTY - SAMPLE COPY
pdf1.08 MB
Warranties Cetco Preview Download
CETCO VOLCLAY PRODUCT WARRANTY - SAMPLE COPY
pdf0.63 MB
Warranties Cetco Preview Download
System Warranty Responsibilities
pdf0.11 MB
Warranties Cetco Preview Download
Waterstoppage Safety Data Sheet
pdf0.17 MB
Technical Datasheet Cetco Preview Download
Volclay Waterstoppage - Techical Data Sheet
pdf0.12 MB
Technical Datasheet Cetco Preview Download
Volclay Waterstoppage - Material Safety Data Sheet
pdf0.48 MB
Technical Datasheet Cetco Preview Download
Volclay Waterstop RX DH - Technical Data Sheet
pdf0.41 MB
Technical Datasheet Cetco Preview Download
Volclay Waterstop RX - Technical Data Sheet
pdf0.44 MB
Technical Datasheet Cetco Preview Download
Volclay Waterstop RX - Safety Data Sheet
pdf0.15 MB
Technical Datasheet Cetco Preview Download
Volclay System Warranty - SAMPLE
pdf1.08 MB
Warranties Cetco Preview Download
Volclay Swelltite - Technical Data Sheet
pdf0.46 MB
Technical Datasheet Cetco Preview Download
Volclay Swelltite - Safety Data Sheet
pdf0.14 MB
Technical Datasheet Cetco Preview Download
Volclay Swelltite - Product Sheet
pdf0.29 MB
Technical Datasheet Cetco Preview Download
Volclay Range - Brochure
pdf0.72 MB
Brochure Cetco Preview Download
Volclay Product Warranty - SAMPLE
pdf0.63 MB
Warranties Cetco Preview Download
Volclay Cetseal - Technical Data Sheet
pdf0.12 MB
Technical Datasheet Cetco Preview Download
Volclay Cetseal - Safety Data Sheet
pdf0.14 MB
Technical Datasheet Cetco Preview Download
Volclay Cetcoat - Technical Data Sheet
pdf0.19 MB
Technical Datasheet Cetco Preview Download
Volclay Cetcoat - Material Safety Data Sheet
pdf0.23 MB
Technical Datasheet Cetco Preview Download
Volclay - Tanking Inspection Form
pdf0.08 MB
Warranties Cetco Preview Download
Volclay - Care and Maintenance Documents
pdf0.17 MB
Warranties Cetco Preview Download
Volclay - BRANZ Appraisal
pdf1.00 MB
BRANZ / Codemark Cetco Preview Download
Volclay - Backfill and Protection
pdf0.79 MB
Technical Datasheet Cetco Preview Download
Termination Bar - Technical Data Sheet
pdf0.15 MB
Technical Datasheet Cetco Preview Download
Reinforcing Fabric - Technical Data Sheet
pdf0.13 MB
Technical Datasheet Cetco Preview Download
KGA Backfill Technical Document
pdf0.82 MB
Technical Datasheet Cetco Preview Download
BPIR - Waterstoppage
pdf2.58 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
BPIR - Waterstop RX
pdf2.55 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
BPIR - Swelltite
pdf2.55 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
BPIR - Cetseal
pdf2.58 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
BPIR - Cetcoat
pdf2.58 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
BPIR - Bentoseal
pdf2.58 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
BPIR - Bentogrout
pdf2.57 MB
Building Product Info Requirements (BPIR) Cetco Preview Download

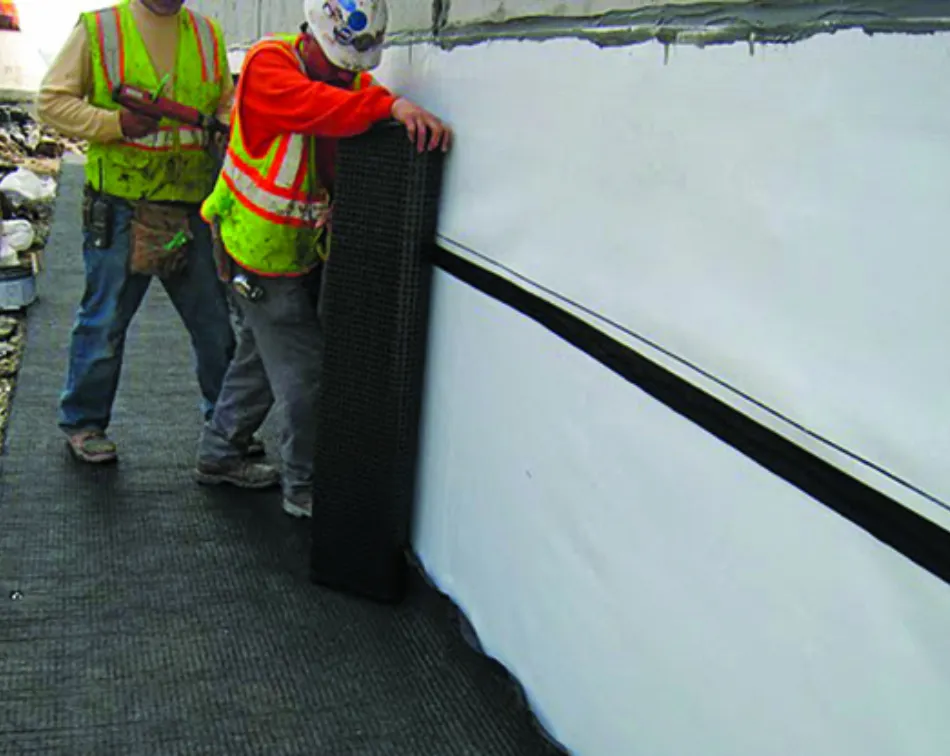

BPIR - Aquadrain
pdf2.58 MB
Building Product Info Requirements (BPIR) Cetco Preview Download
Bentoseal - Technical Data Sheet
pdf0.26 MB
Technical Datasheet Cetco Preview Download
Bentoseal - Material Safety Datasheet
pdf0.47 MB
Technical Datasheet Cetco Preview Download

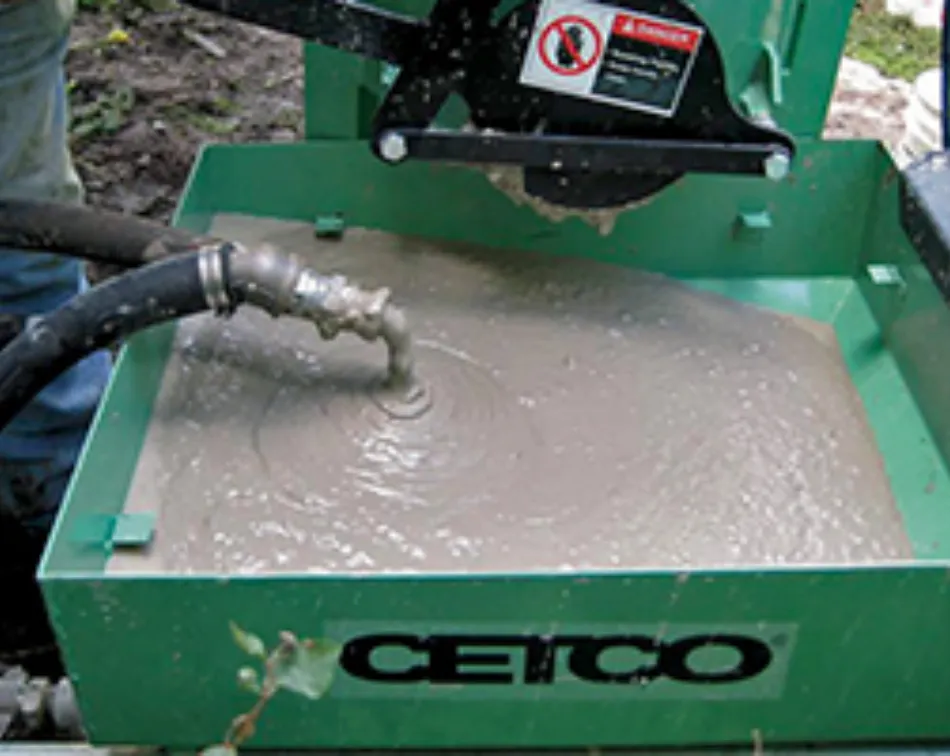

Bentogrout - Technical Data Sheet
pdf0.45 MB
Technical Datasheet Cetco Preview Download
Bentogrout - Safety Data Sheet
pdf0.16 MB
Technical Datasheet Cetco Preview Download
Bentogrout - Product Sheet
pdf0.28 MB
Technical Datasheet Cetco Preview Download

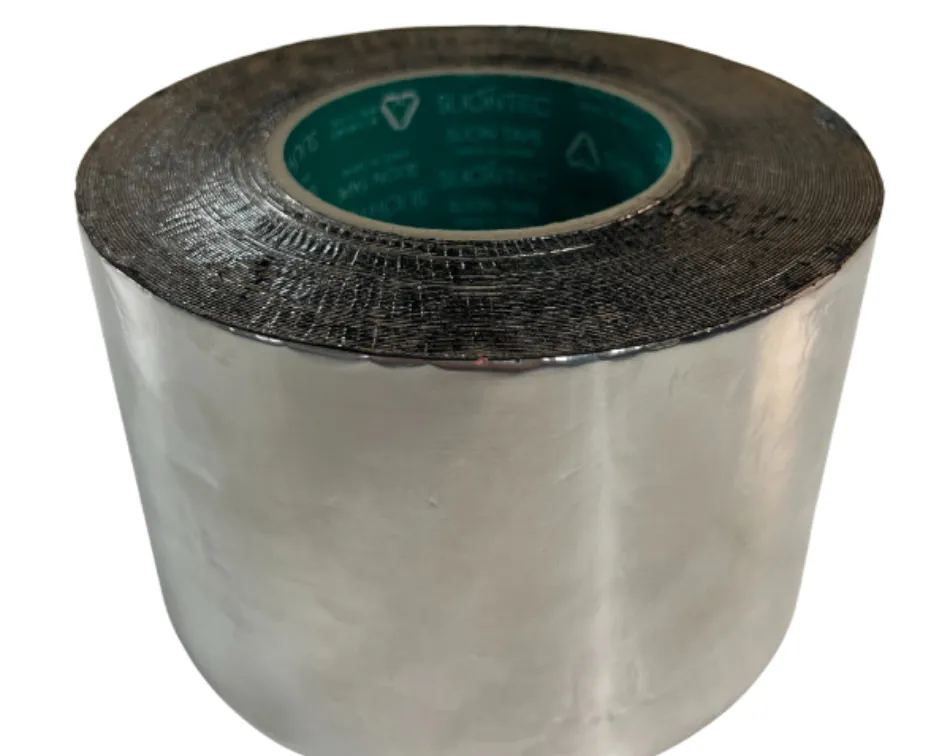

Allco Barrier Tape - Technical Datasheet
pdf0.63 MB
Technical Datasheet Cetco Preview Download
Allco Allguard - Material Safety Data Sheet
pdf0.14 MB
Technical Datasheet Cetco Preview Download
Allco Allguard - Data Sheet
pdf0.25 MB
Technical Datasheet Cetco Preview Download
BPIR - Akwaseal LV
pdf2.55 MB
Building Product Info Requirements (BPIR) Cetco Preview Download

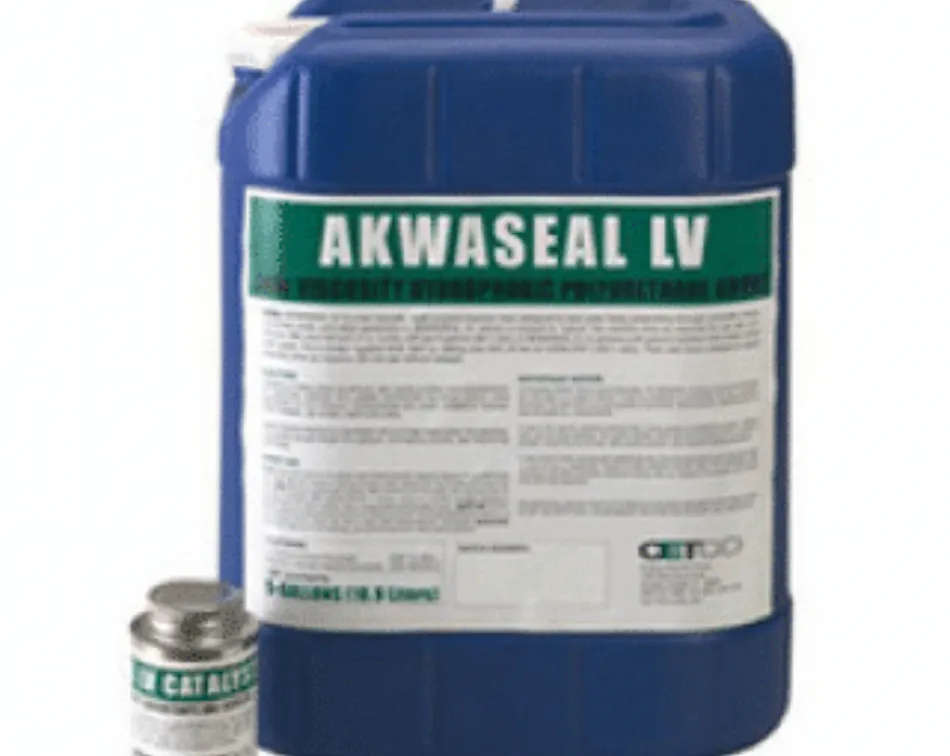

Akwaseal LV Technical Data Sheet
pdf0.20 MB
Technical Datasheet Cetco Preview Download

Tanking membranes

Explore our membrane range for basement, foundation and retaining wall applications – across all New Zealand ground conditions.

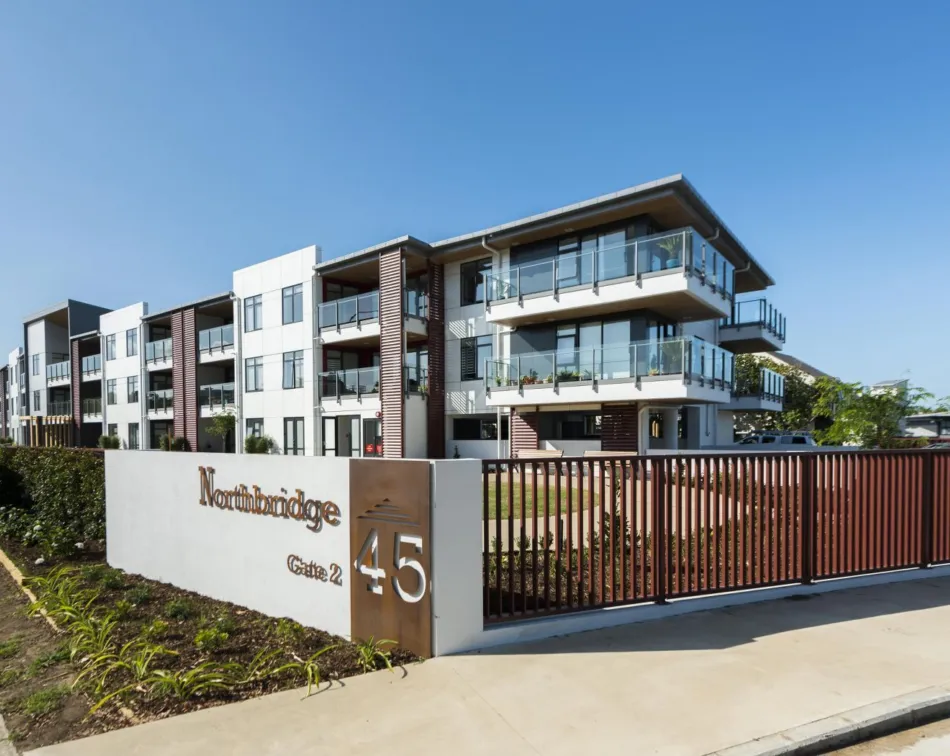

Projects
