Bituthene® 3000
by GCP
Bituthene® 3000 is a self-adhesive membrane designed for use in below-ground construction where reliable protection from moisture is required. Known for its robust cross-laminated backing and ease of installation, Bituthene® 3000 provides a durable barrier that helps protect structures from dampness and moisture ingress.
A well-known and trusted product in New Zealand, Bituthene® 3000 has been used for decades across a wide range of construction projects, from residential basements and retaining walls to large-scale developments.

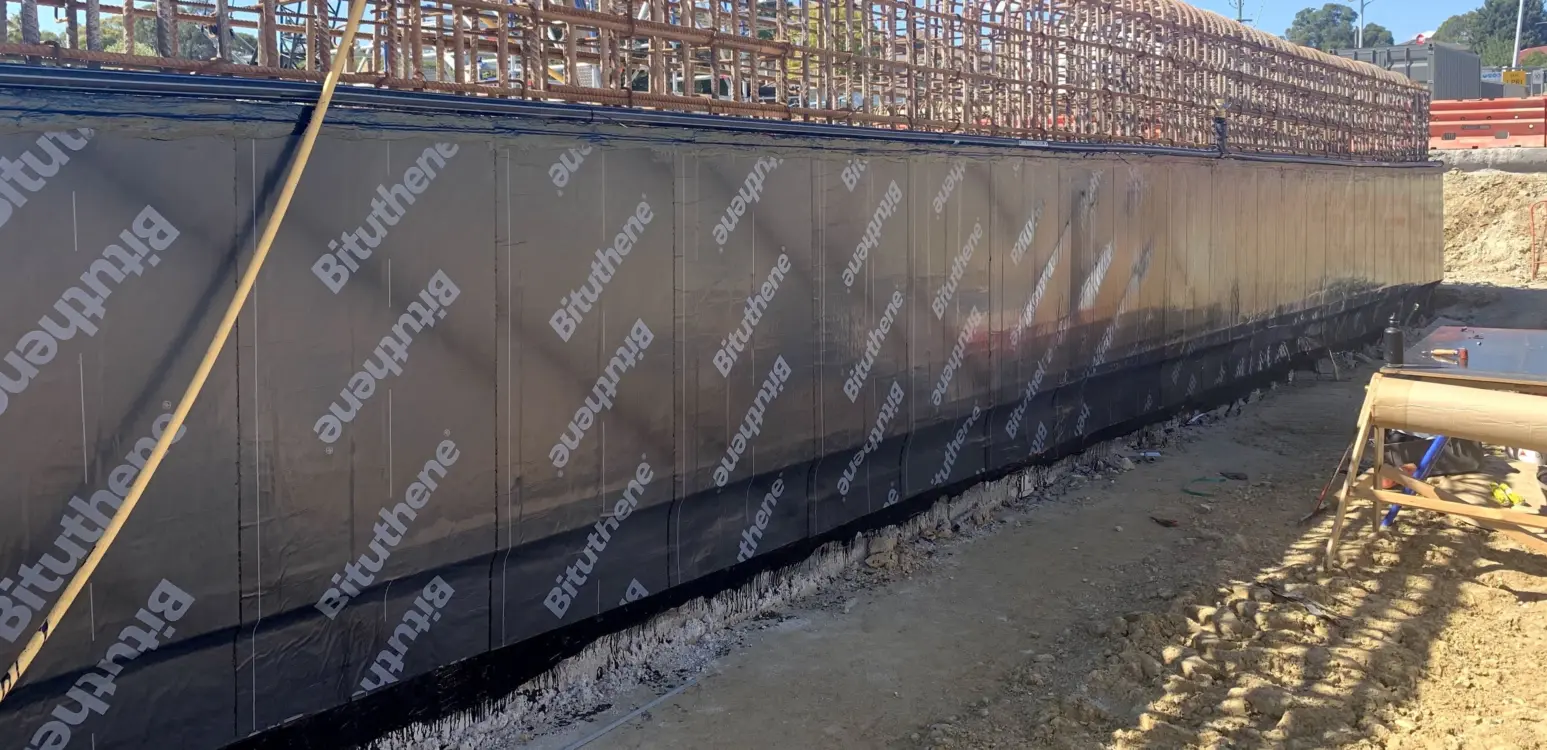

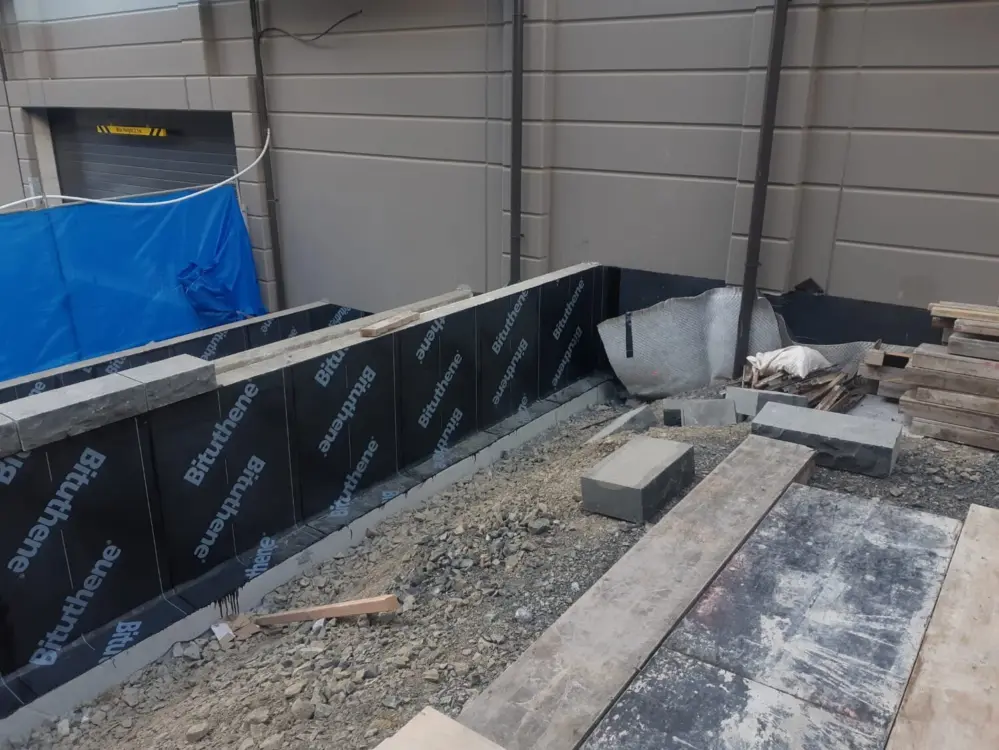

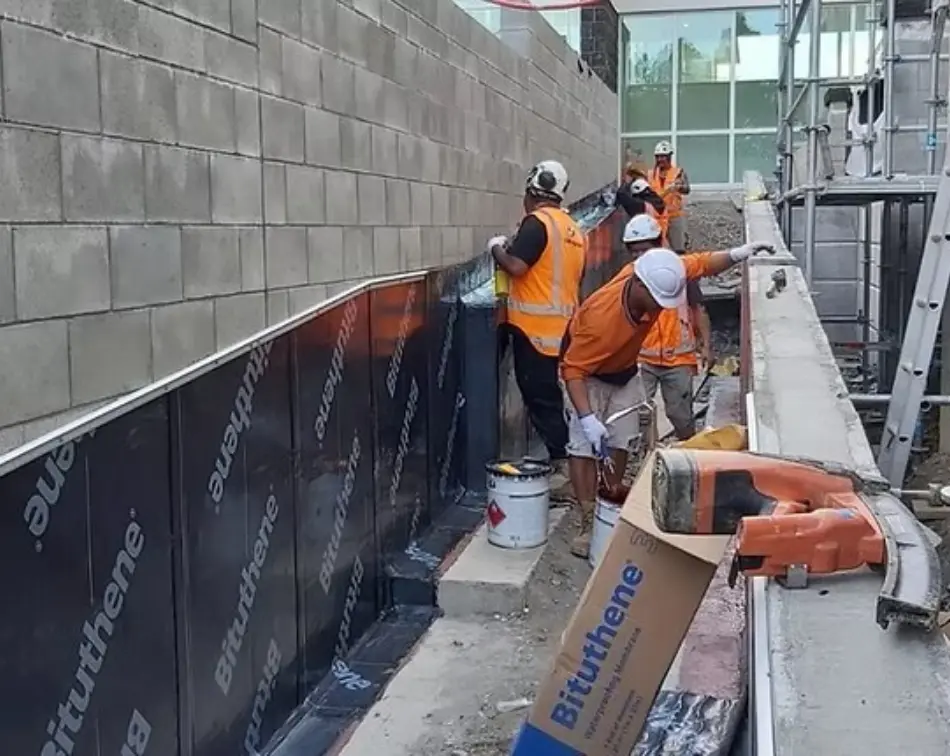

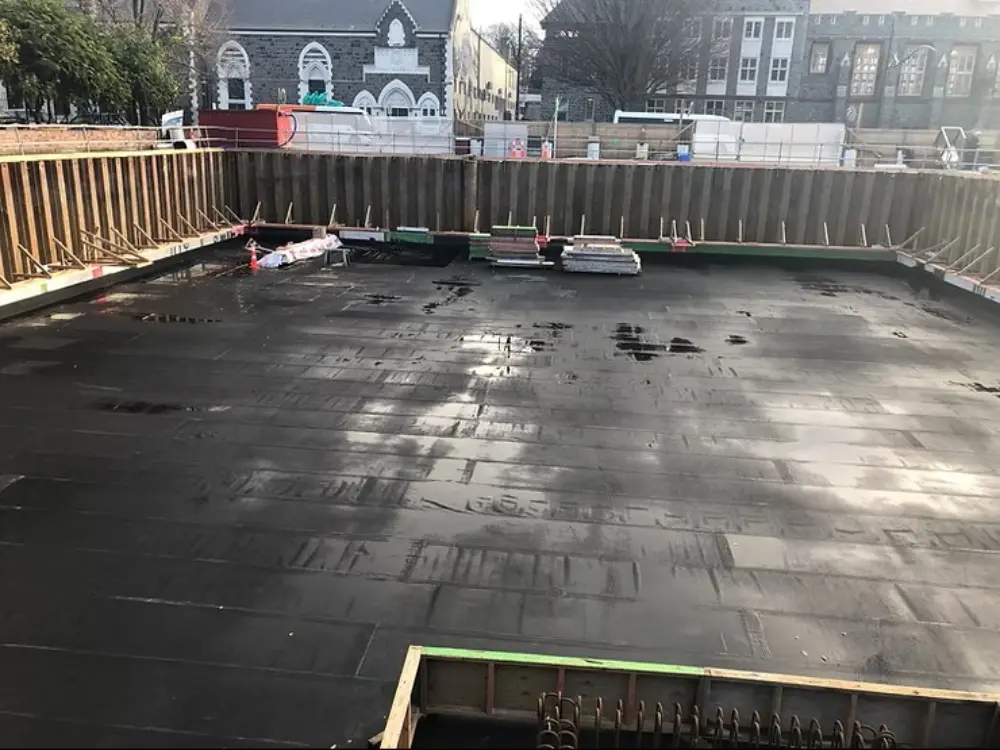

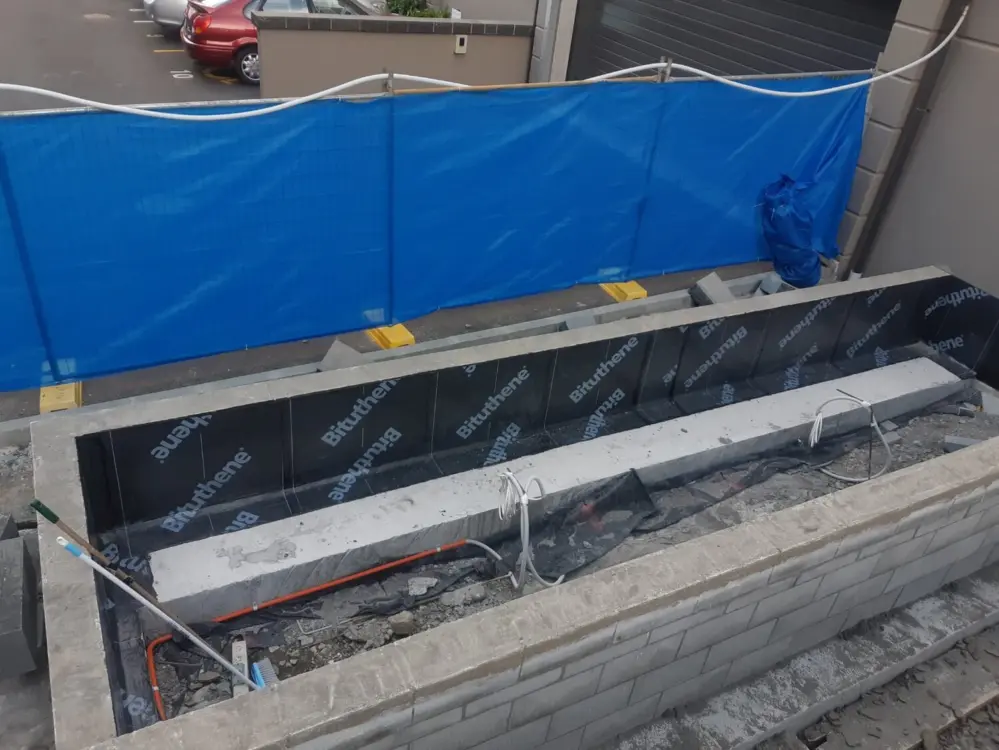

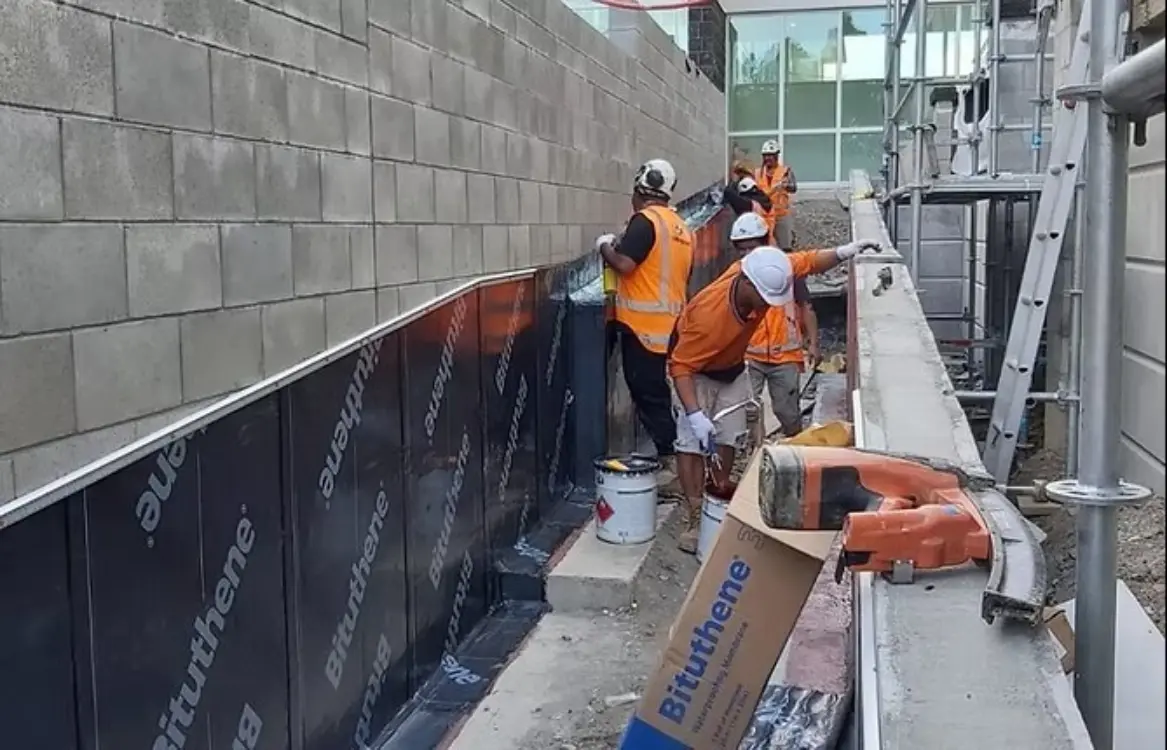

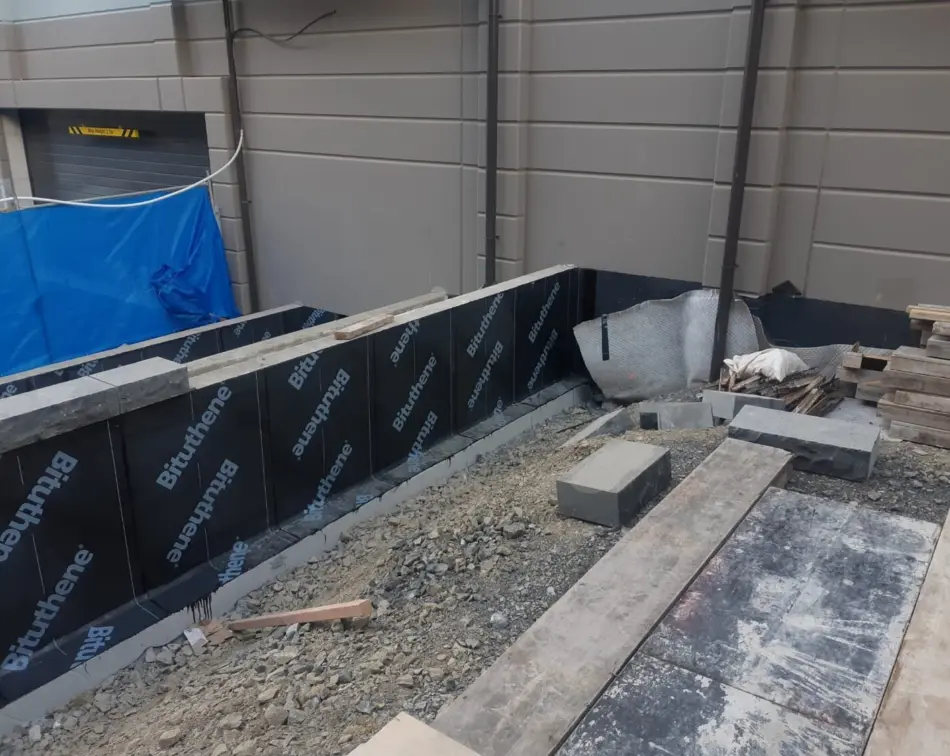

Bituthene® 3000 is a reliable choice for positive-side below-ground applications, offering performance and proven quality in challenging site conditions. Bituthene® 3000 is suitable for basements and foundation walls and retaining walls.
Features
Reliable moisture protection
Provides a continuous barrier to moisture and dampness in below-ground environments.
Durable cross-laminated film
Offers dimensional stability with high resistance to tearing, puncture, and impact.
Cold-applied system
Fully self-adhesive membrane eliminates the need for hot works, reducing on-site safety risks.
Excellent adhesion
Bonds securely to properly primed substrates, ensuring continuity and long-term performance.
Flexible performance
Accommodates minor structural movement, settlement, and shrinkage without loss of integrity.
Consistent quality
Factory-controlled thickness provides uniform application and predictable results on-site.
Compatible system
Can be used alongside Preprufe membranes and other GCP Applied Technologies accessories to form an integrated below-ground solution.
Performance

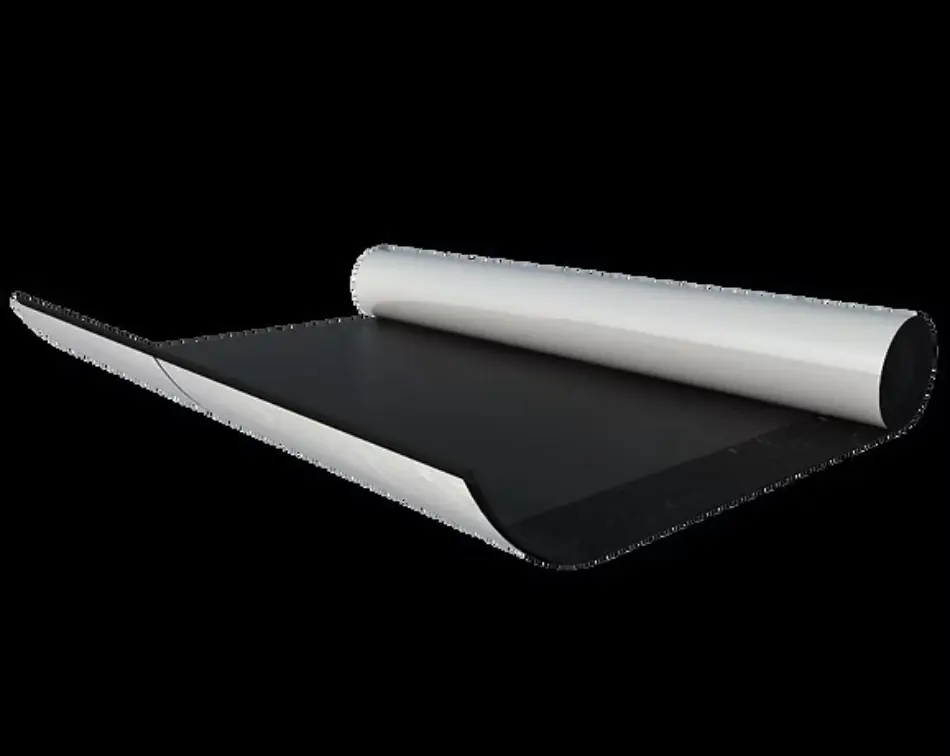

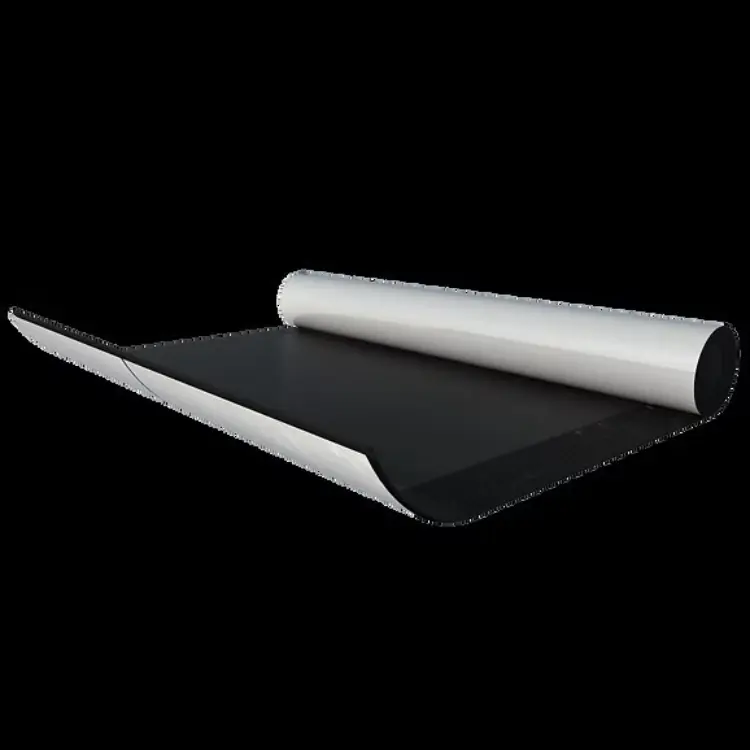

BITUTHENE® 3000 is a self-adhesive, rubberized asphalt/polyethylene waterproofing membranes, combining a robust, flexible, pre-formed high performance, cross laminated, HDPE carrier film with a tacky, self-adhesive rubberized asphalt compound specifically designed to adhere to cured concrete surfaces.
Apply BITUTHENE® 3000 membrane only in dry weather and when air and surface temperatures are 40°F (5°C) or above.
Place backfill as soon as possible. Follow generally accepted practices for backfilling and compaction. Backfill should be added and compacted in 6 in. (150 mm) to 12 in. (300 mm) lifts.
| Roll Dimensions | 0.9m x 20m (18.6m²) |
| Roll weight | 38kg gross |
| Colour | Dark gray-black |
| Thickness | 1.5 mm nominal |
