Bitumen DPM
by Casali

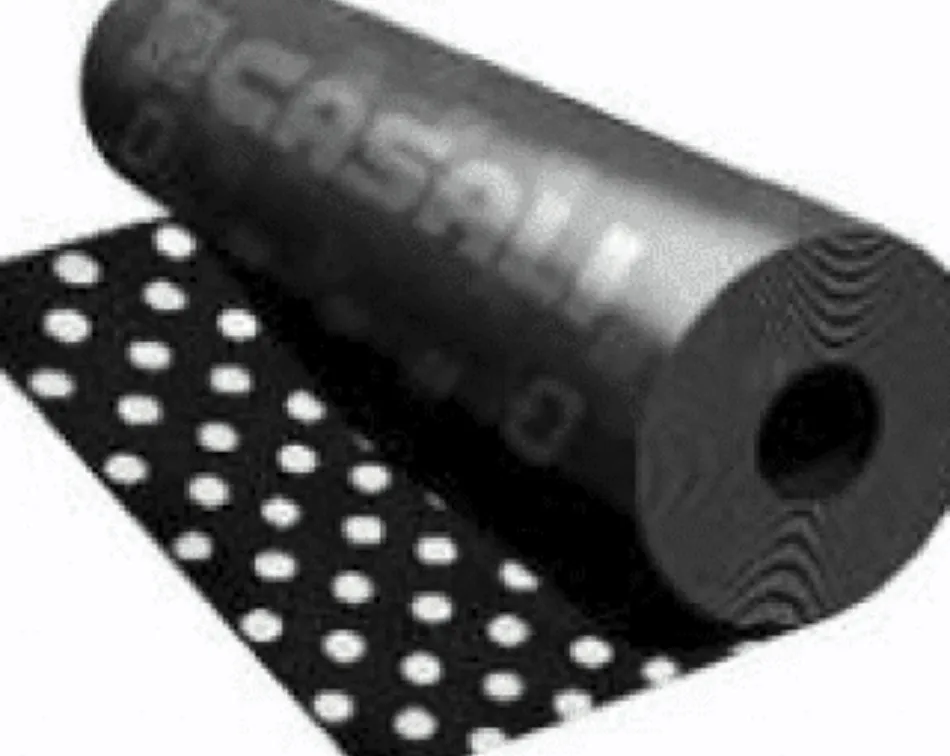

Allco Casali Bitumen Damp Proof Membranes are self-adhesive or torch applied damp proof membranes (DPM) for use in low risk, non-hydrostatic conditions, providing a single layer vapour-barrier protection to below ground concrete structures.
Please note that our DPM membrane system is not a Waterproofing System and has only vapour barrier properties. If you require a waterproofing system please see our Volclay range or refer to Allco for clarification.
The Casali Bitumen Damp Proof Membrane system has a variety of membranes:
Casali Aderix (self-adhesive): Perfect for walls requiring a peel-and-stick application.
Casali Olympia (PBS): Ideal for under-slab applications with torched laps or walls with torched applications.
Casali Dermafil (chipped cap sheet): Suitable for walls with torched application and transitions to above ground.
Casali Eradix (specific root stop membrane): Designed for planter boxes.
Features
Multiple Application Options
Can be applied with torch or as peel and stick
Versatile
Can suit all low-risk situations
Quality Product
High quality modified bitumen from our trusted Casali brand
Fully Bond-able to Substrate
Can be fully bonded to the substrate
Compatible
Fully compatible with Allco Volclay Waterproofing range
Approved Applicators
Installed by Allco Approved Applicators to guarantee quality installation
Product Guarantee
Qualifies for a 20 year product warranty from Allco.
Performance
When installed following the technical literature, Allco Bitumen Casali Damp Proof Membranes will prevent water vapour from penetrating through below-ground concrete structures to interior spaces where moisture may cause damage.
The membrane has a vapour flow resistance of not less than 90 MN s/g.
Clause B2 DURABILITY: Performance B2.3.1 (a) not less than 50 years.
Clause E2 EXTERNAL MOISTURE: Performance E2.3.3.
Clause F2 HAZARDOUS BUILDING MATERIALS: Performance F2.3.1. Allco Casali Bitumen Damp Proof Membranes meets this requirement.
| Document | Type | Brand | |
|---|---|---|---|
| Bitumen Fillet - Safety Data Sheet pdf0.15 MB |
Technical Datasheet | Casali | Preview Download |
| Casali Substrate Checklist - Torch On Plywood pdf0.11 MB |
Substrate Checklist | Casali | Preview Download |
| Casali Substrate Checklist - Concrete pdf0.18 MB |
Substrate Checklist | Casali | Preview Download |
| Casali Product Catalogue pdf0.45 MB |
Product Catalogue | Casali | Preview Download |
| Casali Environmental Product Declaration (EPD) pdf1.87 MB |
Environmental Product Declaration (EPD) | Casali | Preview Download |
| Casali DPM BRANZ Appraisal pdf0.57 MB |
BRANZ / Codemark | Casali | Preview Download |
| Casali Aderix - Technical Data Sheet pdf0.09 MB |
Technical Datasheet | Casali | Preview Download |
