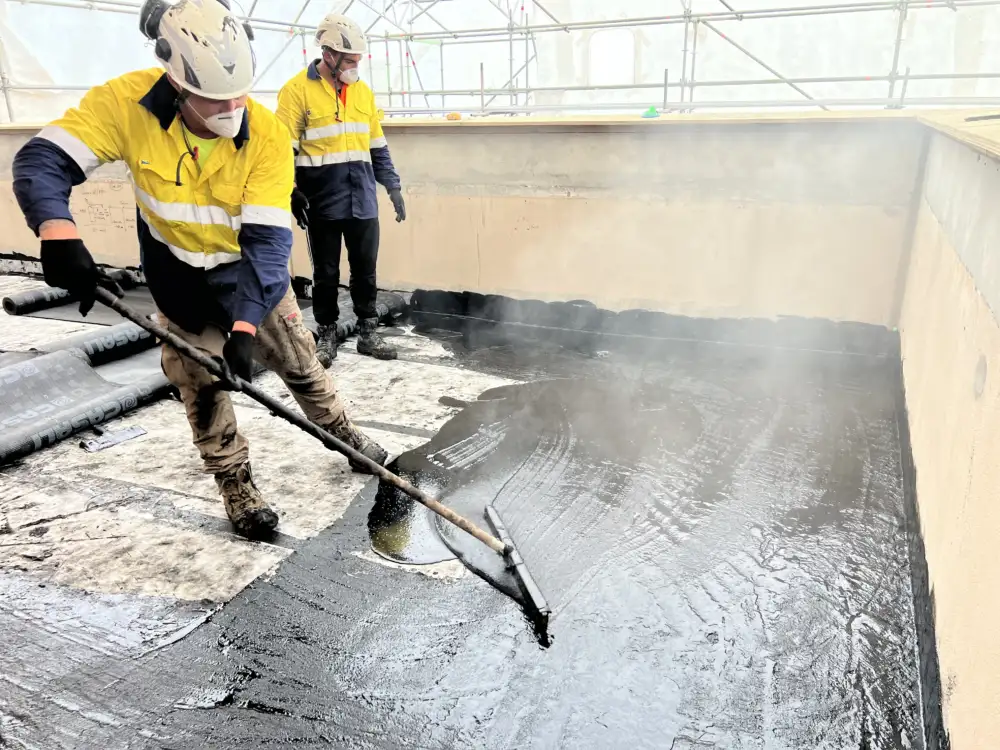

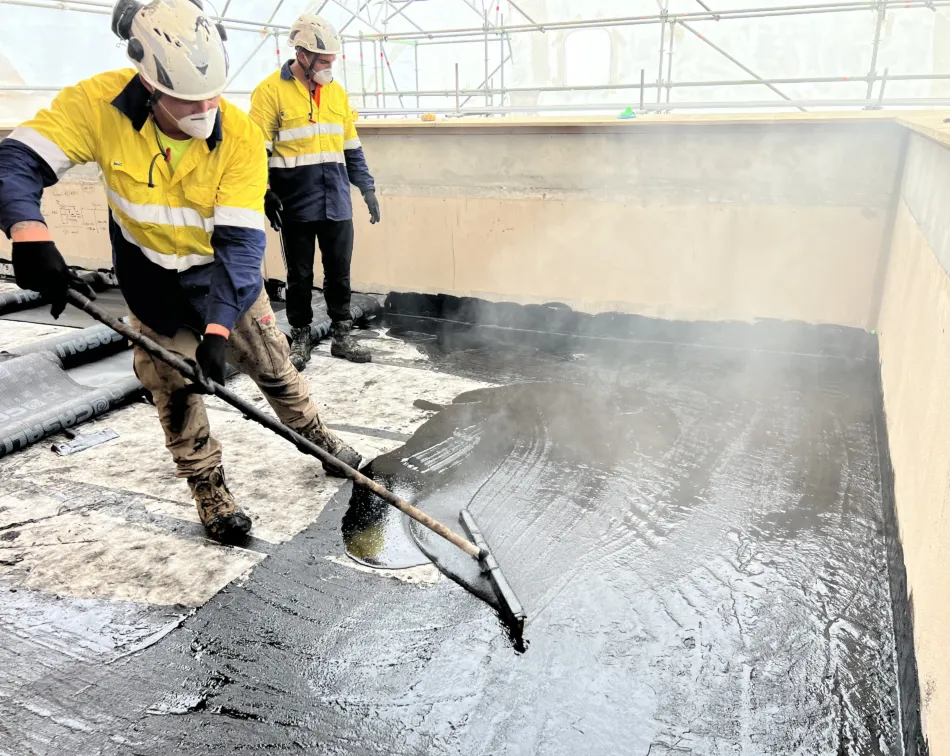

Hydrotech Monolithic Membrane 6125 (MM6125) is a thick, tough, flexible, self-healing membrane for use in roofing and waterproofing applications. It is a special formulation of refined asphalts and synthetic rubbers.

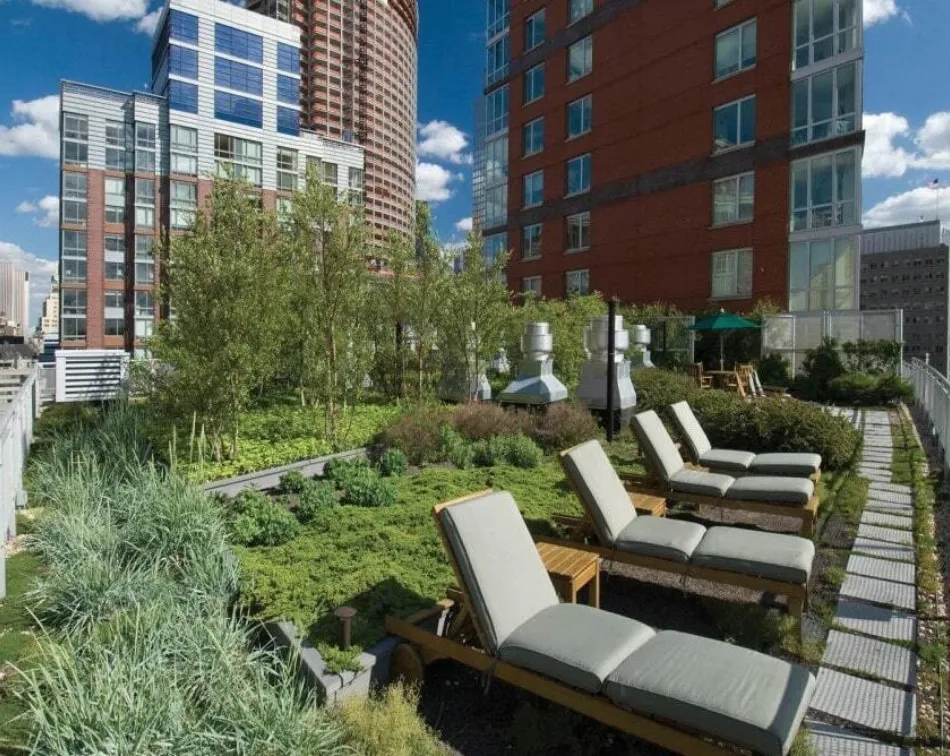

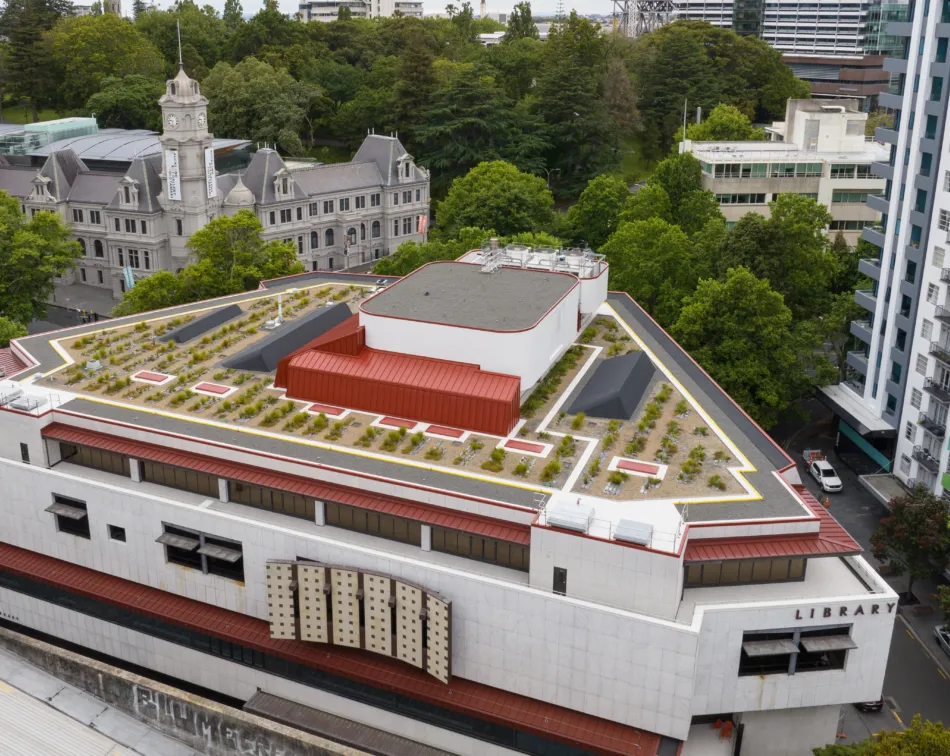

The system provides seamless waterproofing, which is ideal for high performance, zero fall, green roofs and hard landscaped podiums structures.
It is self-healing in the event of minor penetrations and is made of 100% solids, which means no curing time, no mixing and no solvents. The system fully bonds to the substrate avoiding any chance of water tracking, and its monolithic nature ensures no possibility of lap failures.

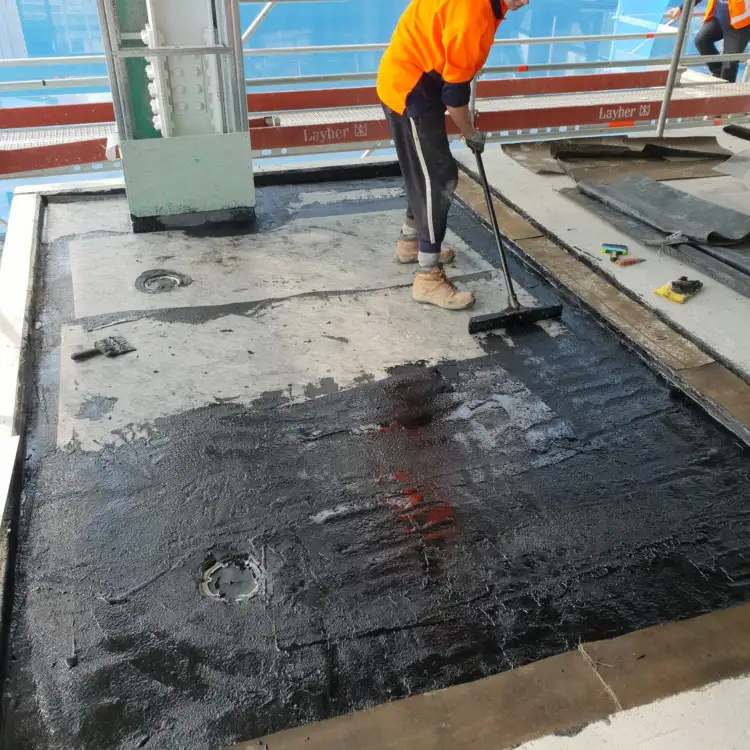

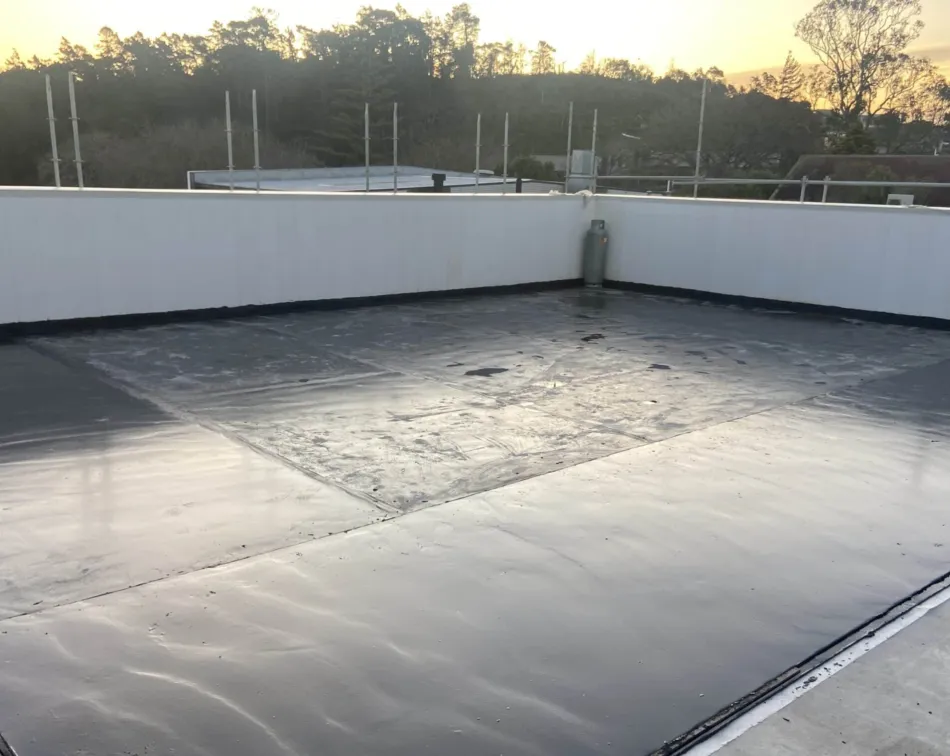

Zero fall applications such as flat roofs, podiums, and terraces, require waterproofing systems that are fully bonded, seamless, and certified to perform without slope. Hydrotech MM6125 is a CodeMark compliant solutions that prevent ponding and ensures long-term watertightness even on dead-flat surfaces.
Hydrotech MM6125 is a “positive side” waterproof membrane, that is it should be applied on the side subject to positive water pressure.
Hydrotech MM6125 is CodeMark certified for use in zero fall applications, meeting all relevant NZ Building Code requirements through expert-reviewed testing, installation audits, and documented performance under Clause E2 for external moisture and Clause B2 for durability
Allco Waterproofing Solutions can provide the following information and assistance to demonstrate compliance with all relevant provisions of the NZ Building Code, BBA 90/2431 Hydrotech MM6125 Roof Waterproofing System, Allco Product Technical Statement, Hydrotech supplied technical data sheet (2013-TDS-6125CO-DY), Allco Waterproofing Solutions Design Summary
Hydrotech may be used in Roofing applications as the waterproofing layer:
In a protected membrane roof (PMR) system, or
Overlaid with a trafficable surface such as pavers.
As a waterproofing system on a non-trafficable area, including:

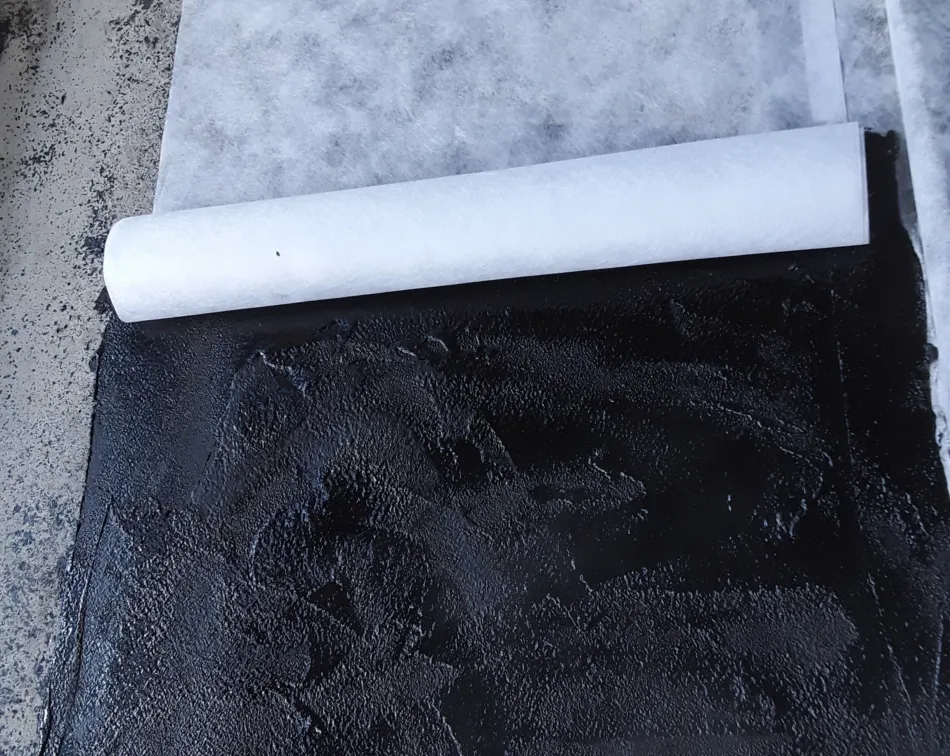

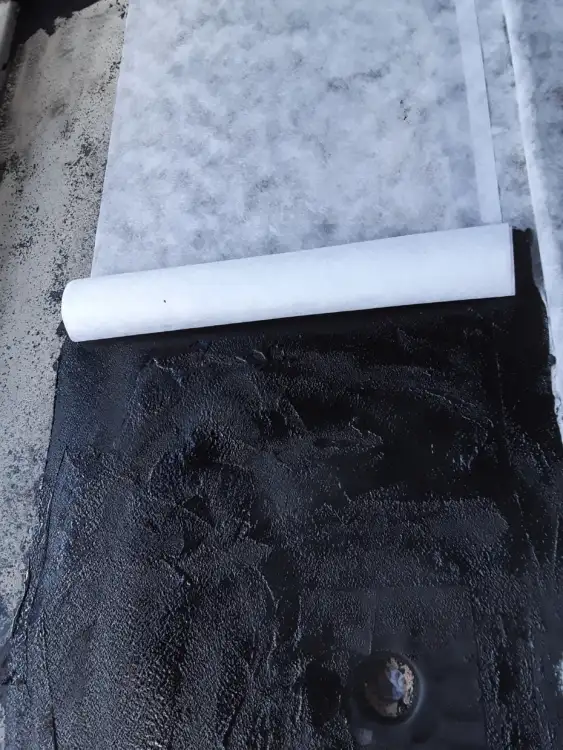

A horizontally applied MM6125 Fabric Reinforced (FR) assembly, and

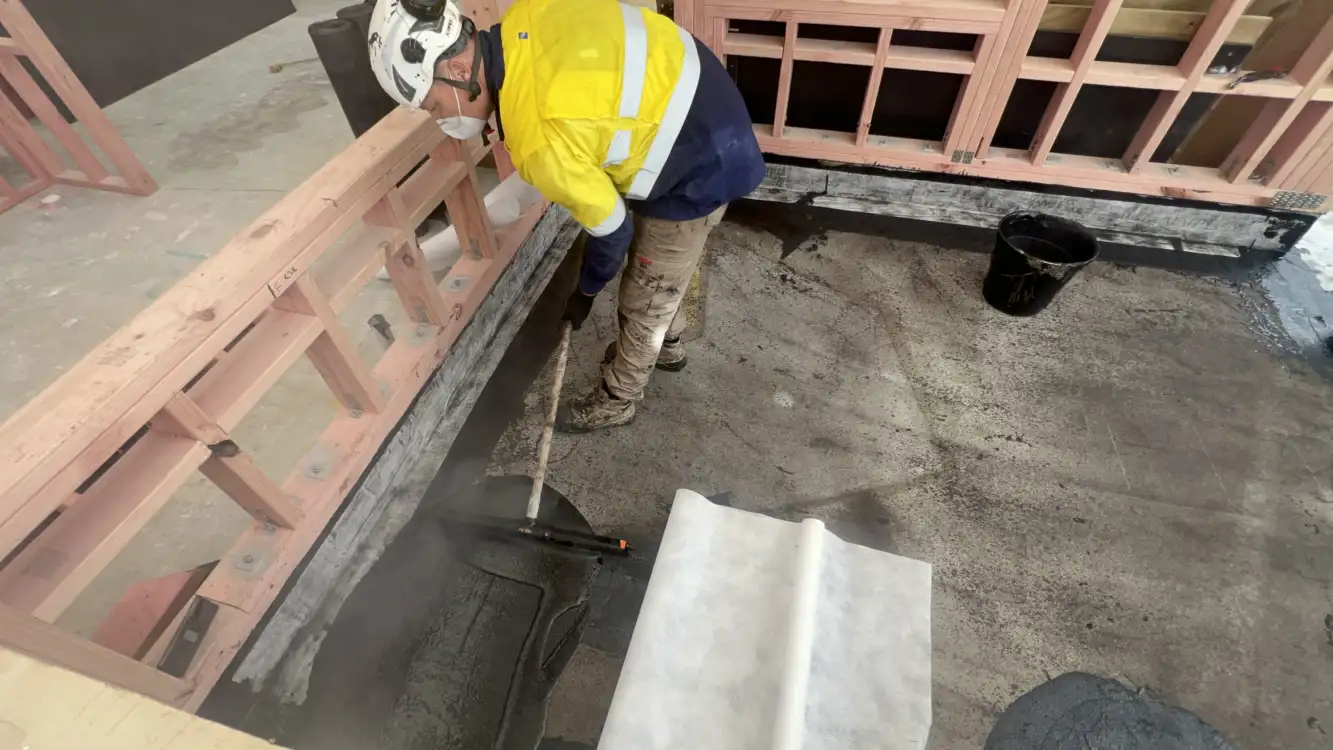

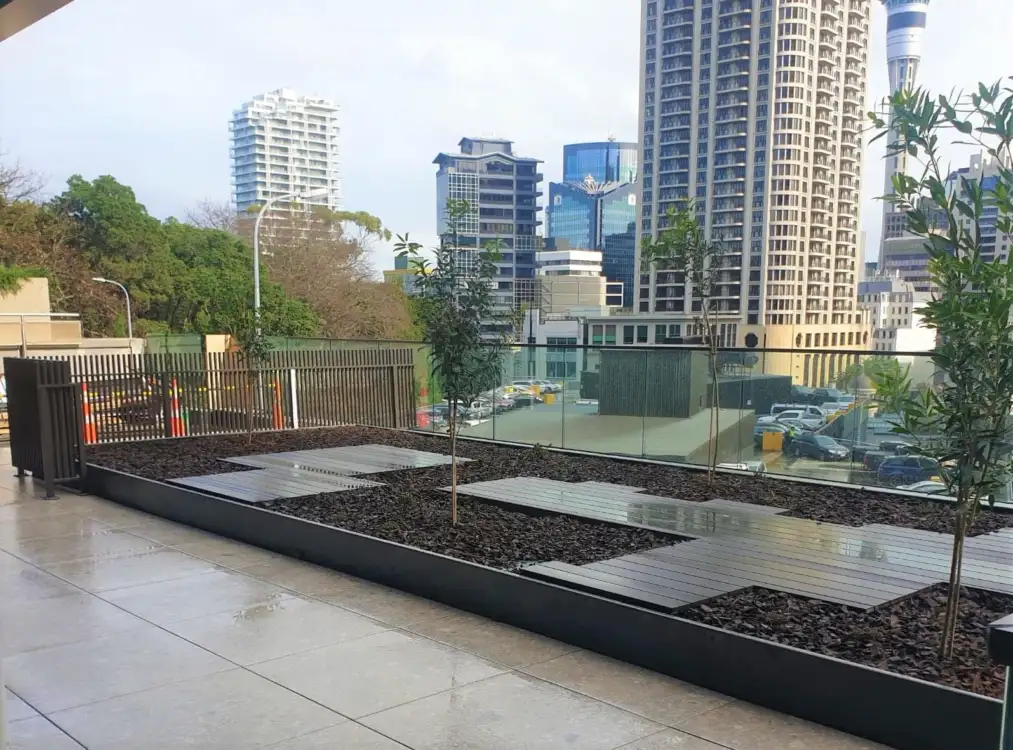

Waterproofing to upstands and other vertical structures, and inside planters.
Hydrotech membrane roofing solution is Codemark Certified to meet all relevant requirements of the NZ Building code.

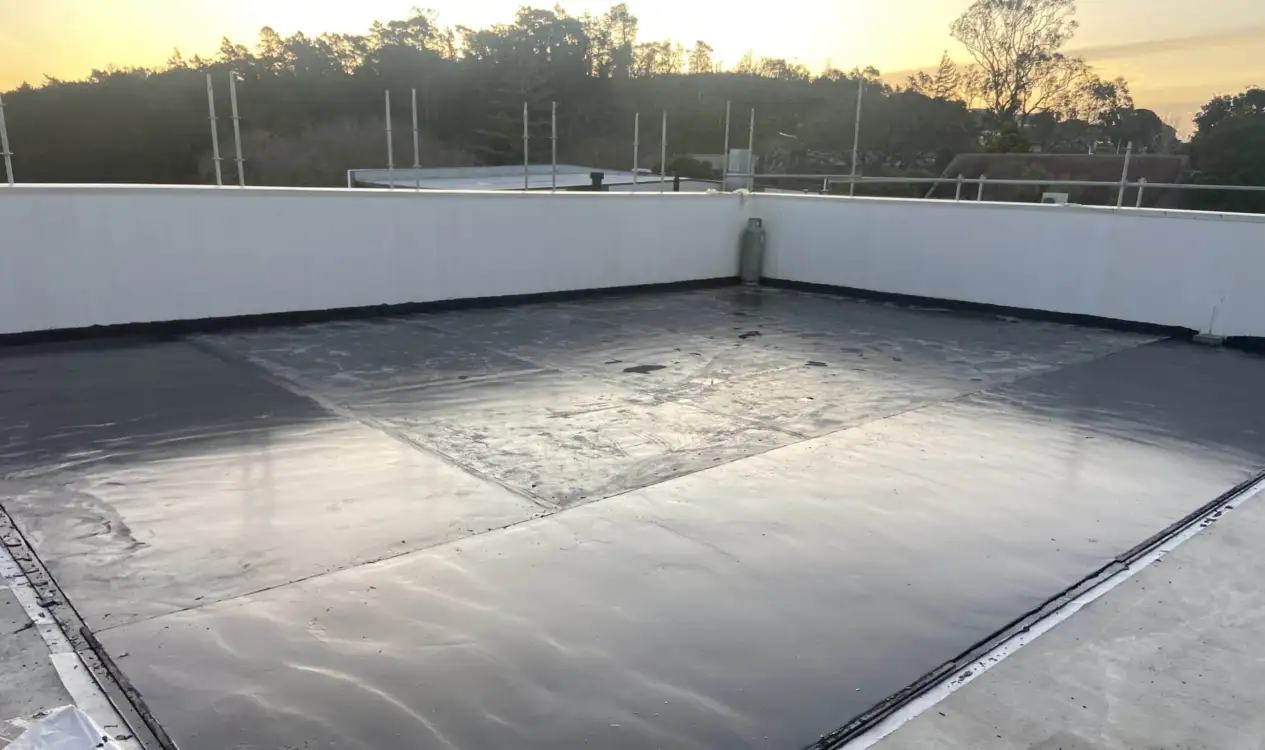

Hydrotech is able to be used in zero fall applications, this means the product can be applied directly to the structural substrate without the need for a screed to falls.
Being a seamless system, Hydrotech can be applied to upstands and details first, enabling other work, such as cladding installation, to commence whilst the main deck is used as a working/storage area which is only waterproofed once clear.
Document | Type | Brand | |
---|---|---|---|
ROOFING - PROPERTY OWNER/END USER INSPECTION SHEET pdf0.06 MB |
Warranties | Casali, Johns Manville, Hydrotech | Preview Download |
Hydrotech Warranty - SAMPLE pdf0.44 MB |
Warranties | Hydrotech | Preview Download |
Hydrotech Monolithic Membrane 6125 - Safety Data Sheet pdf0.19 MB |
Safety Data Sheet (SDS) | Hydrotech | Preview Download |
Hydrotech Environmental Product Declaration (EPD) pdf2.50 MB |
Environmental Product Declaration (EPD) | Hydrotech | Preview Download |
Hydrotech - CodeMark Certificate of Conformity pdf0.43 MB |
BRANZ / Codemark | Hydrotech | Preview Download |
Hydrotech - Care and Maintenance Documents pdf0.15 MB |
Warranties | Hydrotech | Preview Download |
Hydrotech - Brochure pdf0.87 MB |
Brochure | Hydrotech | Preview Download |
Hydrotech - 5170 Surface Conditioner - Safety Data Sheet pdf0.23 MB |
Safety Data Sheet (SDS) | Hydrotech | Preview Download |
BPIR - Hydrotech pdf2.55 MB |
Building Product Info Requirements (BPIR) | Hydrotech | Preview Download |
Allco CodeMark Installer Declaration pdf0.22 MB |
BRANZ / Codemark | Hydrotech | Preview Download |
Allco CodeMark Design Declaration pdf0.17 MB |
BRANZ / Codemark | Hydrotech | Preview Download |
Substrate Checklist - Concrete pdf0.18 MB |
Substrate Checklist | Casali, Hydrotech, Johns Manville | Preview Download |
