Lift pit waterproofing solutions

Waterproofing of Lift Pits is very important as they are usually the lowest point of the structure.

Lift pit slabs can be pre-applied with Volclay Voltex to the slab formwork prior to the concrete pour.

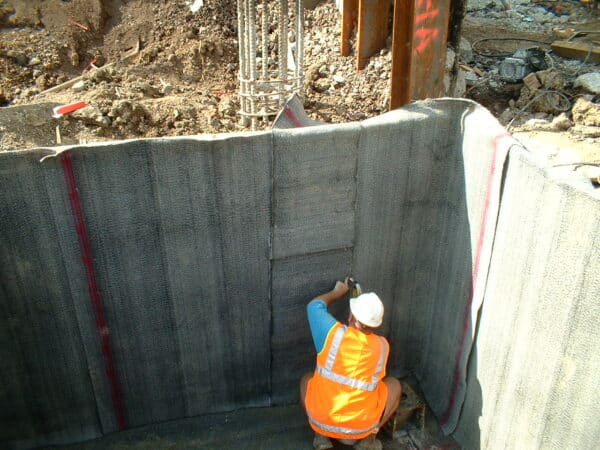

Lift pit walls can be pre-applied with Volclay Voltex either in the casting yard or to the wall formwork prior to the concrete pour or post-applied to the panel on site with Volclay Swelltite.

Please refer to our CAD Library for typical membrane details.

Product Manufacturer Description
Volclay Voltex Cetco

A robust, geotextile bentonite membrane that adapts to shrinkage, ground movement and contaminants. Forming a monolithic barrier, it bonds mechanically to concrete, seals around fasteners and self-heals cracks. Install in any weather.


Learn more
Volclay Swelltite Cetco

Swelltite combines active bentonite and a geomembrane for watertight performance. Punctures self-seal on water contact, making it ideal for challenging below-ground applications and retrofit conditions. No curing, priming or dry substrate required.


Learn more
Coreflex Cetco

Coreflex is a high-performing, methane-rated tanking membrane. This Class A vapour barrier is proven on high-risk sites. With heat-welded seams, it resists the passage of water, vapour and contaminants.


Learn more
